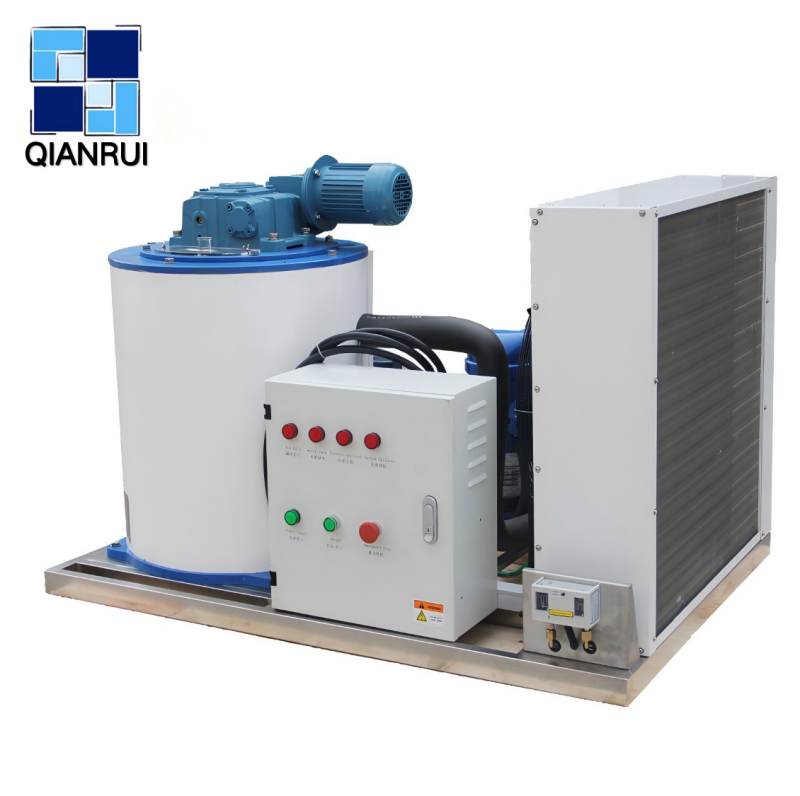

2 Ton/Day Flake Ice Machine

Flake ice machine is a specialized equipment designed to produce uniform, thin slices of ice. It operates by freezing water within its internal chamber and then utilizing a precision-engineered blade system to cut the frozen blocks into delicate slices.

Contact Us

  • Product Description

    Flake ice machine is divided into freshwater flake ice machine and seawater flake ice machine. Flake ice is thin, dry and loose white ice with a thickness ranging from 1.0 mm to 2.5 mm, irregular flake shape and a diameter of about 12 to 45 mm. Flake ice has no sharp edges and will not pierce the frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and has a good moisturizing effect. It is mainly used in aquatic product processing, fishery, food processing, poultry meat processing, vegetable distribution and preservation, pharmaceutical industry, chemical dyes, shopping malls, supermarkets, restaurants, bars, etc.

  • Product Features

    ● Excellent performance:

    High efficiency. Under the set working conditions, the actual ice making output is 5%-10% more than that labeled on the machine. Suitable for large-scale needs.

    ●High quality configuration

    The world famous components ensure to long using time and stable operation.

    ● Internal scraper

    Ice skates  with stainless steel 304, which is low-noisy, stable and durable. To reduce energy consumption and prevent refrigerant leakage.

    ● PLC intelligent control

    Timing switch, remote control. Fault information is shown and recorded on the screen, and sent to the server automatically, to send Real-time Fault Alarm Information to Engineering Departments.

    ● Wide application

    Suitable for many industries such as food processing, fisheries, concrete cooling, supermarket preservation, etc.

Famous brand compressor

The compressor is the heart of the ice machine and the core of the refrigeration cycle. Qianrui uses internationally renowned brands of compressors for customers to choose from. Compressors can be selected from brands such as German Bitzer, Italian Refcomp, American Copeland, and Japanese Panasonic according to product specifications and customer requirements.

PLC Control Cabinet

The role of PLC is akin to that of human brain, overseeing all electrical components in the device and adjusting the ice making and dropping process automatically. It incorporates top-tier brand components, safeguarding the flake ice machine from water scarcity, ice capacity issues, and pressure alarms.

Flake ice machine evaporator

The flake ice machine evaporator is a key part of the flake ice machine ice making components, also known as the ice bucket, which is a cylindrical structure. Made of stainless steel or carbon steel with chrome plating, the internal machine form ensures continuous operation with the lowest power consumption. Stainless steel materials, advanced processing equipment and heat treatment ensure the best heat transfer efficiency.

Ice cutter

The ice scraper and shalf are made of stainless steel 304.Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and prevent leakage of refrigerant; Ice thickness can be varied by changing the speed of the rotor.The ice scraper is a molded part instead of welded part. Its service life is extended and in the same time, the structure eliminate the possiblity of wobbling,abrasion and corrosion that may be caused to the inner freezing surface of the evaporator.

Application

Flake ice machine is widely applied in various industries. It efficiently produces uniform ice slices for food preservation, beverage chilling, and medical uses. Its reliability and high output make it an ideal choice for both commercial kitchens and healthcare settings.
